The GPD Win 5 has quickly become one of the most talked about handheld gaming PCs because it attempts something few portable devices have achieved successfully, delivering near desktop level gaming performance in a handheld form factor. In this GPD Win 5 review, we will explore its capabilities.
Handheld gaming PCs have evolved rapidly over the past few years. Devices such as the Steam Deck and other Windows based handheld systems proved that gamers love the idea of playing full PC titles anywhere. However, most handheld devices focus on balancing performance, battery life, and portability.
The GPD Win 5 takes a very different approach. Instead of designing the device primarily around efficiency, GPD built the Win 5 to maximize raw performance within a handheld gaming system. This GPD Win 5 review will delve into how its AMD’s Ryzen AI Max processors paired with RDNA 3.5 graphics architecture make it a standout.
With up to 16 CPU cores, extremely fast LPDDR5X memory, and a 120Hz display, the Win 5 aims to push handheld gaming performance far beyond what previous portable systems have achieved.
One of the most unusual aspects of the device is its power system. Unlike most handheld gaming devices, the GPD Win 5 does not include a built in internal battery. Instead, the system operates using a detachable external battery pack or direct wall power through a high wattage power adapter.
This design highlights the core philosophy behind the device. The Win 5 prioritizes maximum performance rather than traditional handheld battery design.
In this detailed GPD Win 5 review, we will examine the hardware, design, performance, controls, storage options, power system, and overall gaming experience to determine whether it truly represents the next generation of handheld gaming PCs.
Key Specifications
| Feature | Specification |
|---|---|
| Processor Options | AMD Ryzen AI Max+ 395 (16 cores, 32 threads) or Ryzen AI Max 385 (8 cores, 16 threads) |
| Graphics | Radeon 8060S (Max+ 395) or Radeon 8050S (Max 385), RDNA 3.5 architecture |
| Display | 7 inch LTPS LCD |
| Resolution | 1920 × 1080 |
| Refresh Rate | 120Hz with AMD FreeSync Premium support |
| Memory | 32GB to 128GB LPDDR5X |
| Storage | PCIe Gen4 NVMe SSD up to 4TB |
| Expansion | Mini SSD slot and microSD card slot |
| Operating System | Windows 11 |
| Connectivity | WiFi 6E and Bluetooth 5.3 |
| Power System | External 80Wh battery pack or wall power |
| Charger | 180W dedicated DC power adapter |
| Weight | About 565 grams for the handheld unit |
These specifications place the GPD Win 5 well above most handheld gaming devices currently available. Instead of competing directly with traditional handheld consoles, the Win 5 is designed to function as a fully capable portable Windows PC.
Design and Build Quality

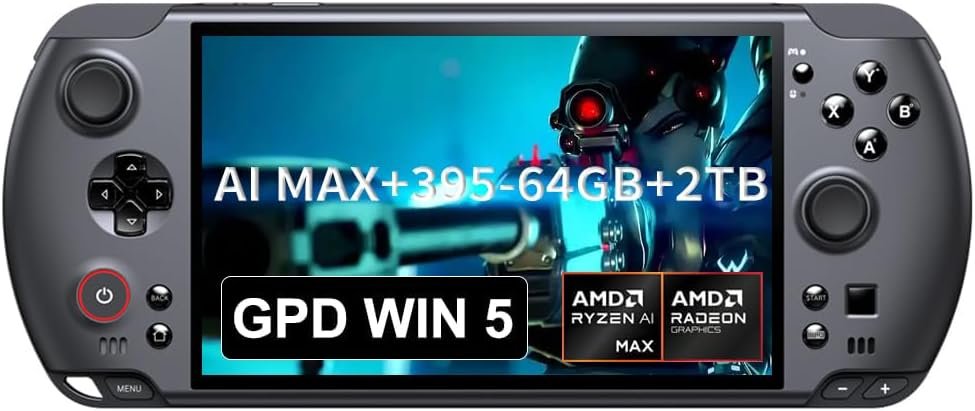

At first glance, the GPD Win 5 resembles a traditional handheld gaming console with controls positioned on both sides of a central display.
However, the similarities end there.
The device is built to house significantly more powerful hardware than typical handheld systems. Because of this, the internal layout prioritizes cooling and component space rather than making the device as small as possible.
The chassis uses durable plastic materials combined with reinforced internal construction designed to support extended gaming sessions.

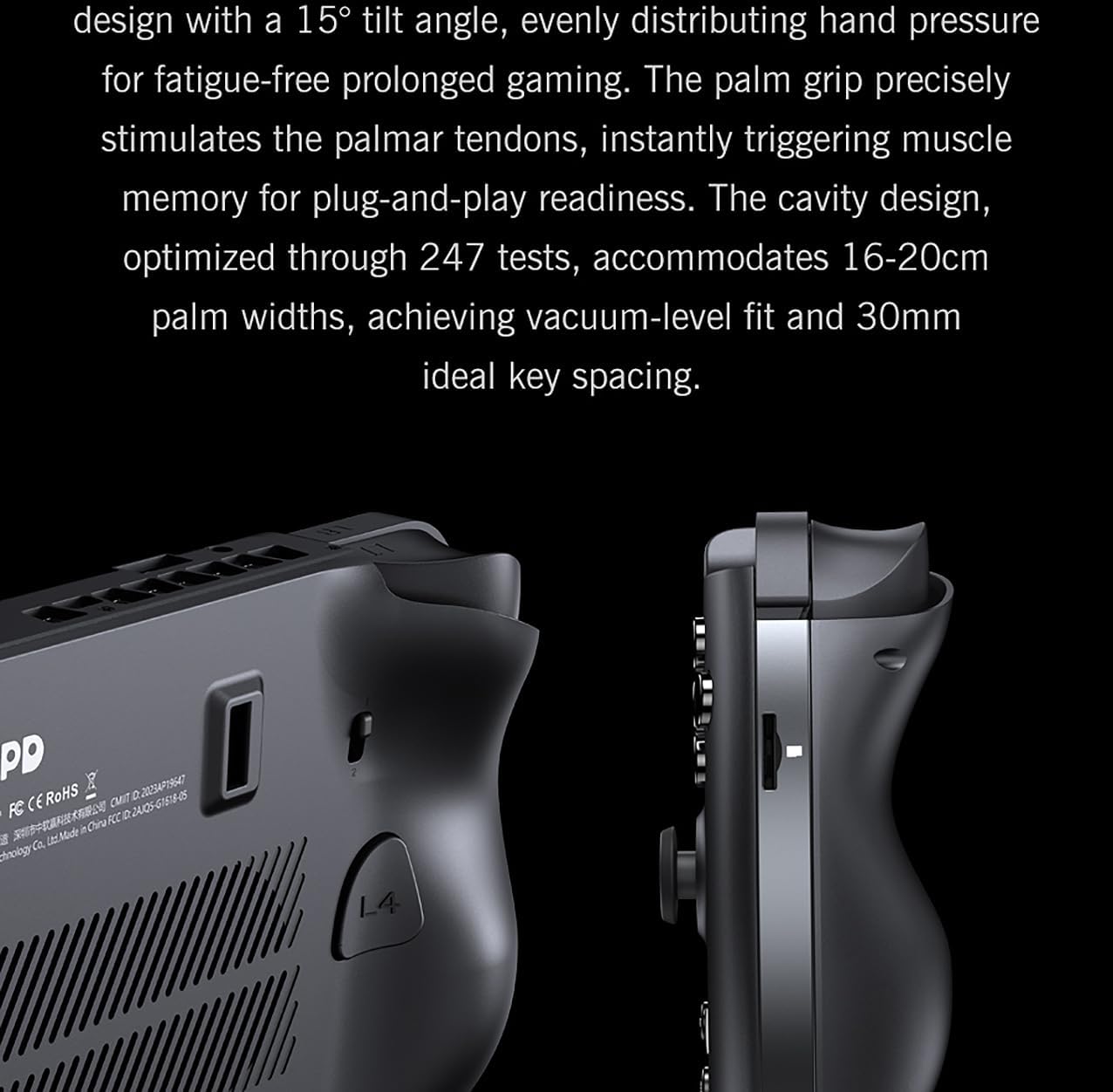

Ergonomic grips on both sides of the device help distribute the weight more evenly across the hands. This makes the device easier to hold during long gaming sessions.
The handheld unit itself weighs approximately 565 grams. When the external battery pack is attached for portable use, the total carrying weight increases.
On the front of the device, the display dominates the layout. The bezels are relatively slim, maximizing screen space while still leaving room for the integrated control system.
The overall visual style is functional rather than flashy. Instead of aggressive gaming design elements, the Win 5 focuses on clean lines and practical engineering.
Cooling vents are placed strategically around the device to help manage the heat generated by the powerful hardware inside.
The result is a design focused on performance and durability rather than minimal size.
Display Quality and Visual Experience
The display plays an important role in the handheld gaming experience, and the GPD Win 5 provides a solid visual platform for modern games.
The device features a 7 inch LTPS LCD panel with a resolution of 1920 by 1080. This resolution delivers sharp visuals and clear text when playing games or using desktop applications.
One of the standout features of the display is its 120Hz refresh rate. A higher refresh rate allows motion to appear smoother, especially in fast paced games such as shooters or racing titles.
The display also supports AMD FreeSync Premium, which helps reduce screen tearing and improve frame pacing during gameplay.
While the display uses LCD technology instead of OLED, it still offers strong brightness levels and respectable color reproduction for gaming.
Another advantage of the display is its standard 16:9 aspect ratio. Since most PC games are designed for this format, compatibility and scaling are generally straightforward.
Overall, the display offers a strong combination of clarity, smoothness, and compatibility with modern PC games.
Performance: The Most Talked About Feature
The primary reason the GPD Win 5 has attracted so much attention is its powerful hardware.
At the center of the system is AMD’s Ryzen AI Max processor platform. The flagship configuration uses the Ryzen AI Max+ 395 processor, which features 16 CPU cores and 32 threads.
This processor is paired with Radeon 8060S integrated graphics built on AMD’s RDNA 3.5 architecture.
Lower configurations use the Ryzen AI Max 385 processor paired with Radeon 8050S graphics.
These processors provide far greater computing power than the chips used in most handheld gaming devices.
The graphics hardware supports modern gaming technologies including AMD’s FSR upscaling system, which helps improve frame rates while maintaining image quality.
In practical terms, the device is capable of running many modern PC games at respectable settings when configured appropriately.
Another major advantage of the system is its memory capacity.
While many handheld gaming devices include between 16GB and 32GB of RAM, the Win 5 can be configured with significantly more memory. Some configurations offer up to 128GB of LPDDR5X memory.
This level of memory allows the device to handle demanding workloads beyond gaming. Users can run creative applications, development tools, and heavy multitasking environments.
Because the device runs Windows 11, it behaves like a full desktop computer rather than a locked gaming console.
Users can install traditional software, connect external displays, and use the device as a compact workstation.
Storage and Expandability
The GPD Win 5 includes a flexible storage system designed for large game libraries.
The primary storage slot supports PCIe Gen4 NVMe SSDs up to 4TB. This allows the device to store large modern games that require significant storage space.
In addition to the main SSD slot, the device includes a mini SSD expansion slot designed for removable storage modules.
This feature allows users to swap storage modules containing different game libraries without reinstalling software.
A traditional microSD card slot is also included for additional storage expansion.
This multi layer storage system gives the device significant flexibility for users with large game collections.
Controls and Gaming Experience
The GPD Win 5 includes a flexible storage system designed for large game libraries.
The primary storage slot supports PCIe Gen4 NVMe SSDs up to 4TB. This allows the device to store large modern games that require significant storage space.
In addition to the main SSD slot, the device includes a mini SSD expansion slot designed for removable storage modules.
This feature allows users to swap storage modules containing different game libraries without reinstalling software.
A traditional microSD card slot is also included for additional storage expansion.
This multi layer storage system gives the device significant flexibility for users with large game collections.
Cooling System and Thermal Design
Managing heat is one of the biggest challenges in high performance handheld devices.
The GPD Win 5 uses a cooling system built around dual fans and multiple heat pipes to manage the heat produced by its powerful processor.
The cooling system pulls heat away from the CPU and GPU before venting it through strategically placed ventilation openings.
Because the processor can operate at higher power levels than those found in most handheld devices, effective cooling is essential.
This thermal system allows the device to sustain higher performance during extended gaming sessions.

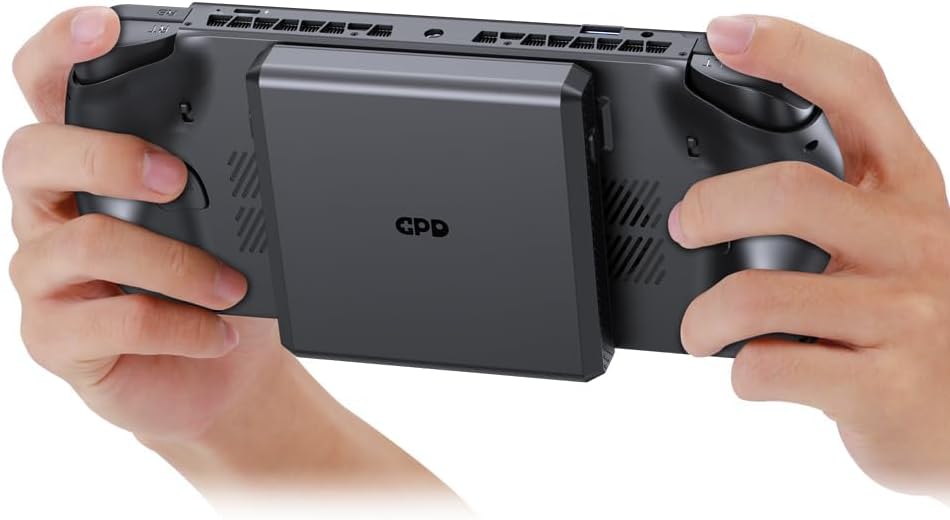

The External Power System
One of the most unusual aspects of the GPD Win 5 is its external power system.
Unlike most handheld gaming devices, the Win 5 does not contain a built in battery.
Instead, the system relies on an external 80Wh battery pack for portable use.
The battery pack connects to the device and provides power during mobile gaming sessions.
When maximum performance is required, the device can also run directly from its 180W dedicated DC power adapter.
This design allows the device to support extremely powerful hardware without the space limitations associated with internal batteries.
However, the external battery design also introduces trade offs. Because the battery is separate from the handheld unit, the system can be less convenient to carry than traditional handheld consoles.
This decision reflects the central design philosophy of the device. Performance takes priority over conventional handheld design limitations.
Who the GPD Win 5 Is For
The GPD Win 5 is not designed for every gamer.
Instead, it targets a specific audience.
PC enthusiasts who want a portable system capable of running modern games may find the device appealing.
Developers and creative professionals may also benefit from the device’s ability to run demanding software in a compact system.
Because the device runs Windows, it can function both as a gaming console and a portable workstation.
However, casual gamers who simply want an inexpensive portable gaming system may find the price and design unnecessary.
Final Verdict
The GPD Win 5 is one of the most ambitious handheld gaming devices ever created.
Its powerful processors, advanced cooling system, and flexible storage options make it closer to a compact gaming PC than a traditional handheld console.
The unusual external battery design highlights the engineering priorities behind the device.
Rather than focusing on traditional handheld design limitations, the Win 5 prioritizes delivering the highest possible performance in a portable form factor.
For enthusiasts who want one of the most powerful handheld gaming PCs available, the GPD Win 5 represents an impressive and forward thinking device.
At the same time, its premium price and unconventional power system mean it will not be the ideal choice for every gamer.
Even so, the device demonstrates how far handheld gaming technology has progressed and offers a glimpse into the future of portable PC gaming.
